Introduction#

ThunderScope is a novel oscilloscope design that streams all 1 GB/s of its captured sample data in real-time to a host computer via Thunderbolt/USB4 or PCIe.

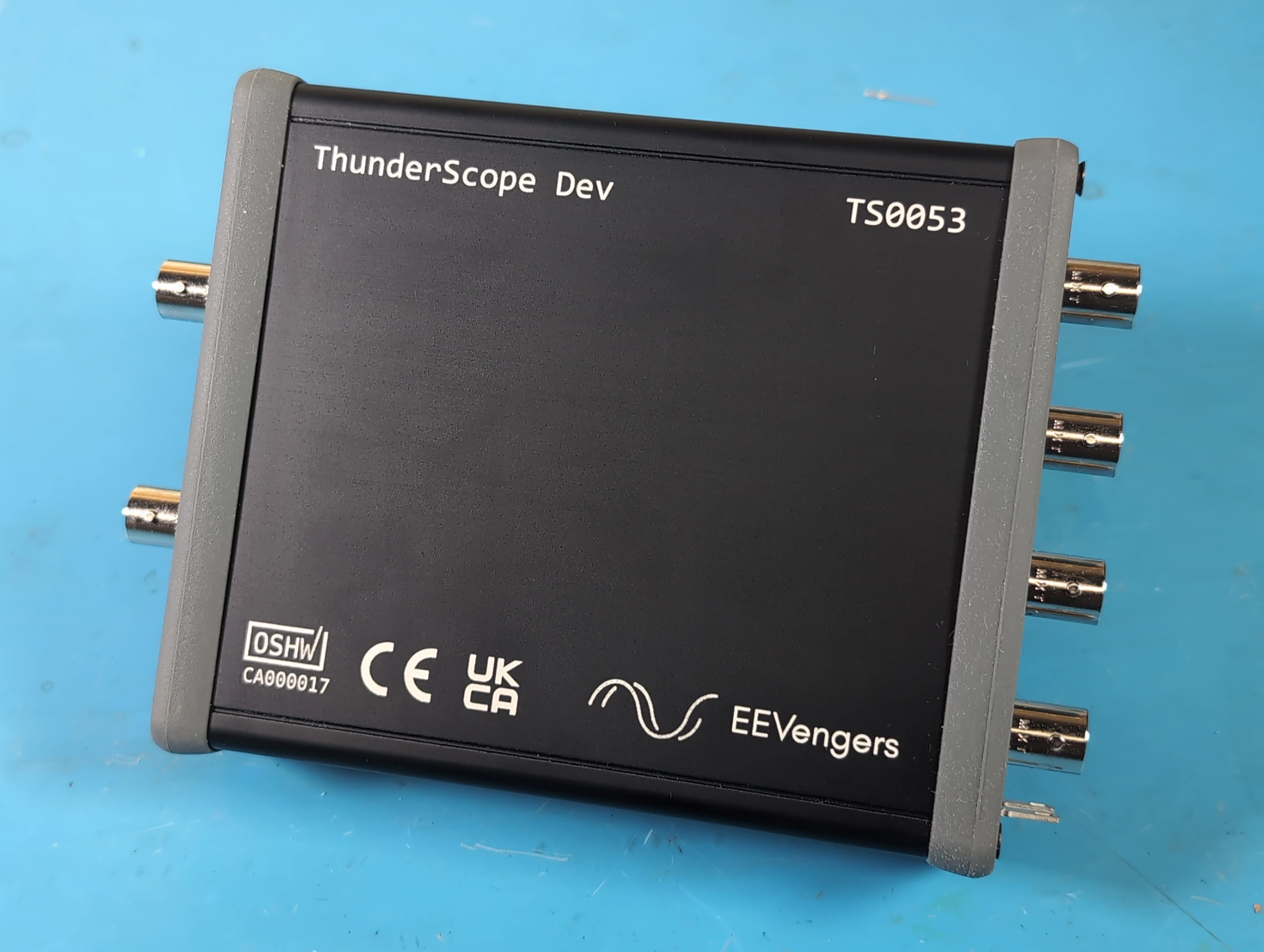

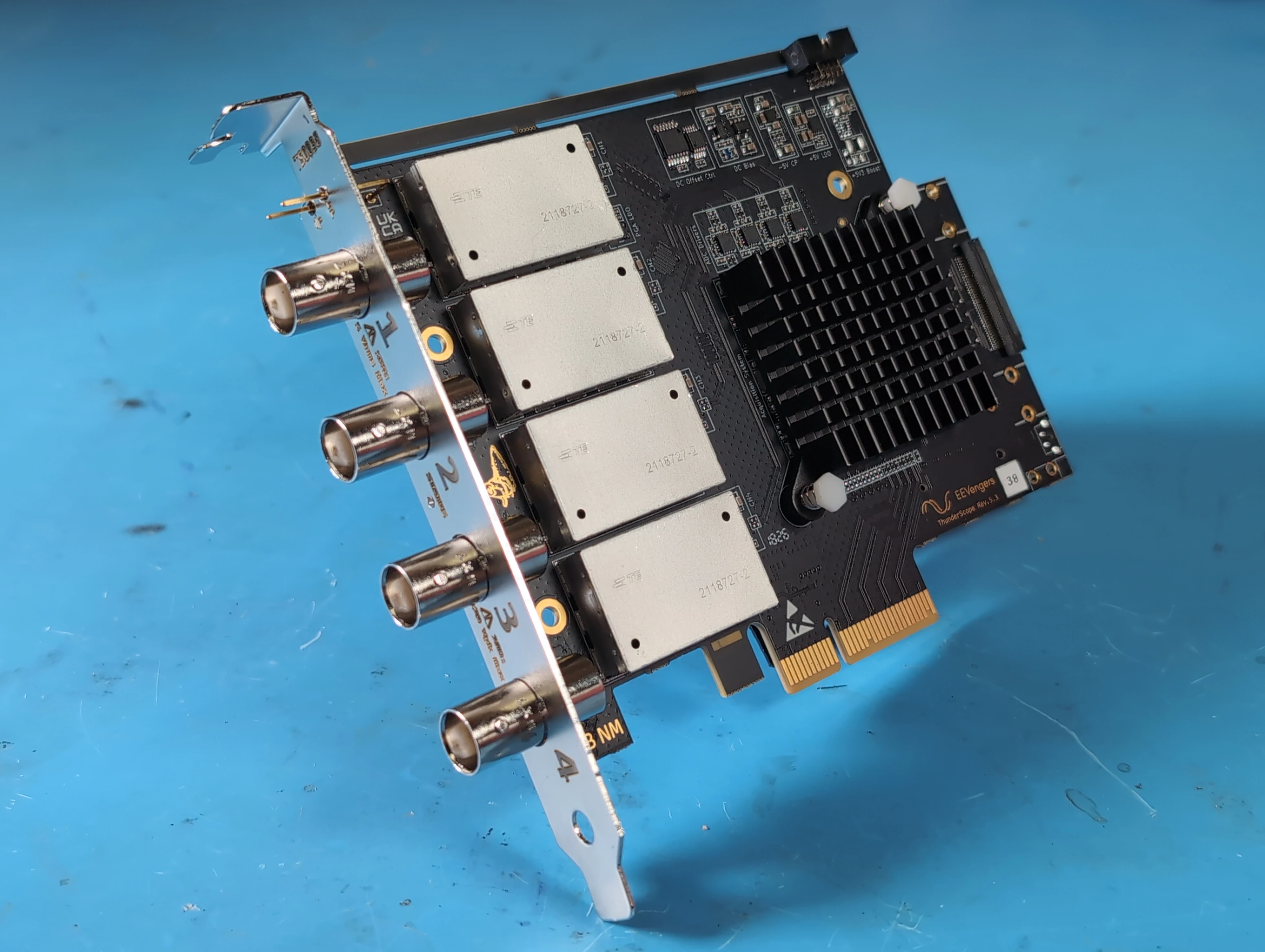

TS-USB4 Unit TS-PCIe Unit

ThunderScope is open source from volts to bits with the intention of serving as a foundation for future open source test equipment. If we could make open source the standard for 3D printing, why not do the same for the tools that make electrical hardware development possible?

Why Stream 100% of the Sample Data?#

  • Host memory is used as sample memory, resulting in the highest sample memory of any oscilloscope on the market today.

  • Triggering is done on the host’s CPU, allowing for custom triggers to be written in standard procedural languages.

  • Display and post-processing is done on the host’s GPU, powerful hosts can display waveforms with zero dead time and do FFTs and protocol decodes in real-time.

These aspects of oscilloscope performance have always been set when an oscilloscope is purchased. These are also often the driving factors behind upgrading to a new model, or for paying the manufacturer to unlock features in the hardware you already own!

With ThunderScope these aspects of performance are never artificially limited and will improve every time the host is upgraded. This makes ThunderScope useful for much longer than a typical oscilloscope.

Hardware Specifications#

None of the above points matter for an oscilloscope without the analog performance to back it up, this is why a great deal of effort has been put into the analog front end used in ThunderScope.

Channels

4

Analog Bandwidth

500 MHz

Input Impedance

50 Ω, 1 MΩ

Full Scale Input Voltage Range (1 MΩ)

8 mVpp to 40 Vpp

Full Scale Input Voltage Range (50 Ω)

8 mVpp to 4 Vpp

Max. Sample Rate

1 GS/s (8 Bit), 660 MS/s (12 Bit)

Noise @ Full Bandwidth (Most Sensitive Range)

90 μVrms
